Snowkey Raking Type Automatic Ice Storage (7 - 150 Tonne)

Name: Snowkey Raking Type Automatic Ice Storage (7 - 150 Tonne)
Brand: Snowkey
SKU: SK-AIS
Availability: InStock

Snowkey | SKU: SK-AIS

$0⁰⁰

Tax included Shipping calculated at checkout.

Description

Snowkey Raking Type Automatic Ice Storage - AIS Series

A refrigerated, fully automatic ice storage room that stores ice from your ice machine and delivers large volumes on demand. As the storage fills, a raking mechanism levels the ice. When the upper limit is reached the control system stops the ice machine automatically, and restarts it once the ice level drops.

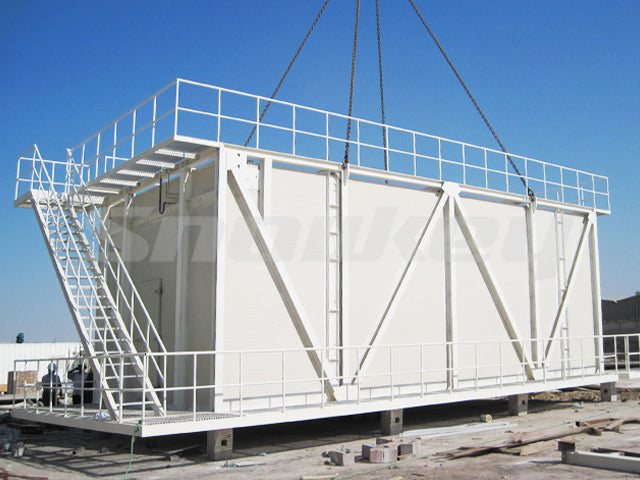

Available as 20ft or 40ft containerised units, or as a factory pre-assembled combined type. Both are easy to transport by truck, rail or ship, making them ideal for remote sites or operations that move frequently.

Ideal for fish and seafood processing, fishing ports and wharves, meat and poultry processing, food processing plants and concrete cooling.

Features

Specially designed double insulation layer with an air circulation layer around the ice, even when full
Refrigeration system holds ice at approx. -5 to -8°C, keeping it dry and free-flowing
Heavy-duty industrial components for continuous running, long life and low maintenance

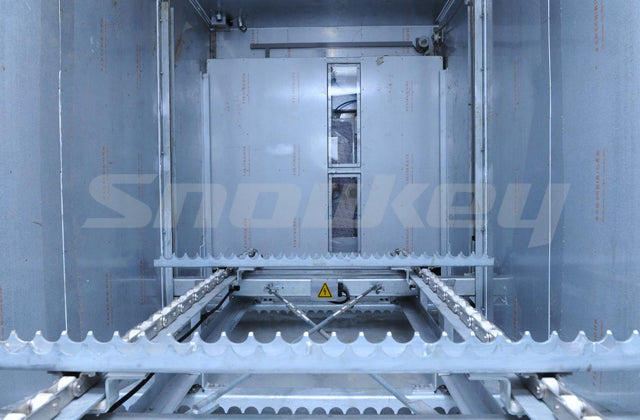

Heavy-duty ice raking system built for long continuous operation without deformation
Patented chainwheel design and heavy-duty link chains that resist freezing and tripping

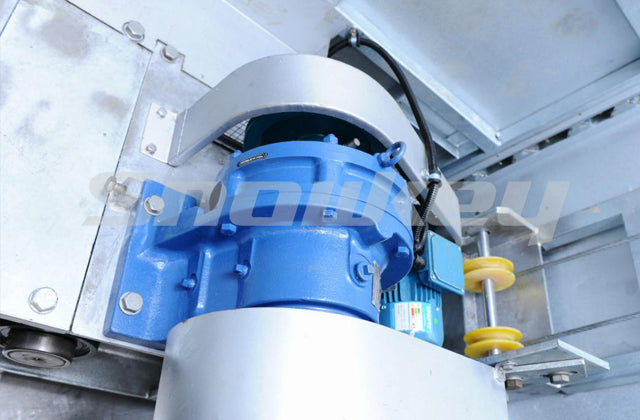

Automatic elevating mechanism keeps the ice raker above the ice surface
Ice-buried sensing, raking shelf balance sensing and raker overload protection
Ice-contact surfaces in galvanised steel or stainless steel to suit the application
Automatic ice deflecting door with sight window to view the ice level

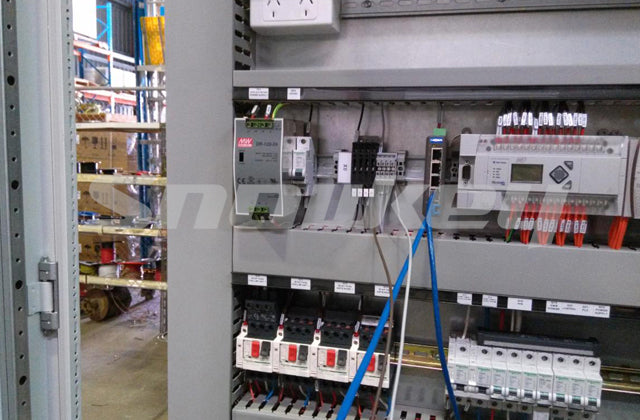

Industrial PLC with touch panel, monitoring, variable speed raking control and alarms

Models

Model	Capacity (tonnes)	Type	L x W x H (mm)	Net weight (tonnes)
AIS8	7	Containerised	6058 x 2438 x 2896	7.5
AIS18	15	Containerised	12192 x 2438 x 2591	12.3
AIS23	18	Containerised	12192 x 2438 x 2896	13.6
AIS35	35	Combined	12192 x 3530 x 3715	20.4
AIS40	40	Combined	12192 x 4130 x 3715	22.4
AIS50	50	Combined	12192 x 4130 x 4195	23.3
AIS50S	50	Combined	12192 x 5191 x 3565	25.3
AIS60	60	Combined	12192 x 5191 x 3965	26.1
AIS65	65	Combined	12192 x 5191 x 4195	26.6
AIS80	80	Combined	12192 x 5191 x 4865	28.3
AIS70	70	Combined	15000 x 5191 x 4195	38.1
AIS100	100	Combined	15000 x 5191 x 4965	41.5
AIS120	120	Combined	15100 x 5291 x 6005	53.5
AIS150	150	Combined	15100 x 5291 x 6965	56.7

Larger custom systems up to 200 tonnes are available.

Please note:

Price on application. Please contact us for a quote, including delivery and installation.
Made to order. Allow approx. 2-3 months for manufacturing and delivery
Warranty: 12 Months
Specifications are subject to change by the manufacturer.
ICETEC are authorised SNOWKEY Distributors and can price any Snowkey ice storage or ice system.
