Snowkey 83 Ton/24hr Containerised Flake Ice Plant

PRICE: APPLY FOR QUOTATION
Please contact us or phone 09 945 9257 for pricing on this model.

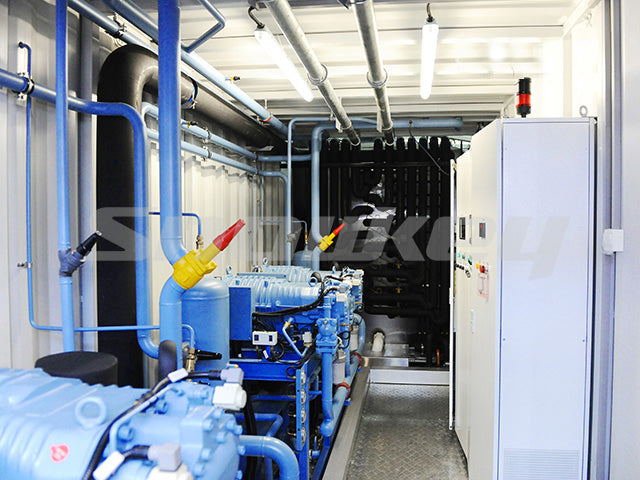

Snowkey 83 Ton/24hr Containerised Flake Ice Plant - Model FIP83

A complete plug-and-play flake ice plant built into a 40 ft high cube shipping container, producing 83,000 kg of flake ice every 24 hours. Factory built and tested, ready to connect to power and water on site. Easy to transport and relocate.

Applications: Concrete cooling, chemical and dye processing, aquatic product processing and fresh seafood.

Standard configuration

• New white 40 ft high cube container fitted with air conditioning, lighting and aluminium alloy floor
• Semi-hermetic screw or piston refrigeration compressor unit
• Evaporative condenser with two-speed fan
• Snowkey internally-scraped flake ice evaporator with water tank and pump
• Refrigeration controls, protection components and pipework
• Interface to the ice store for run and alarm signals
• Electrical control panel with fully automatic control
• Factory tested before dispatch

Specifications

• Ice production: 83,000 kg / 24 hours
• Ice temperature: -8°C
• Refrigerant: R404A or R717 (ammonia)
• Required refrigeration capacity: 409.4 kW
• Installed power: 347.54 kW
• Running power: 272.84 kW
• Ice machine water supply: 3.493 tonnes/hour
• Water consumption: approx. 1177 L/hour
• Container: 40 ft high cube
• Operating range: water 0–35°C, ambient 5–60°C

Please note:

• Price on application. Quotes exclude installation, commissioning and refrigerant charge unless stated. Please contact us for an installed quote.
• Ice storage, ice rakes and delivery systems can be quoted to suit. Please enquire.
• Made to order. Allow approx. 2-3 months for manufacturing and delivery.
• Warranty: 12 Months
• ICETEC are authorised SNOWKEY Distributors and can price any Snowkey ice makers.
• Model and specifications may change without notice.
