Snowkey 1600kg/24hr Marine On-Board Flake Ice Machine - SFM16W

PRICE: APPLY FOR QUOTATION
Please contact us or phone 09 945 9257 for pricing on this model.

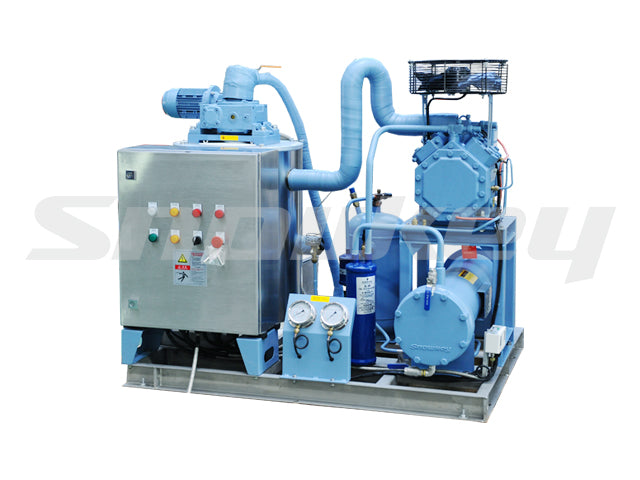

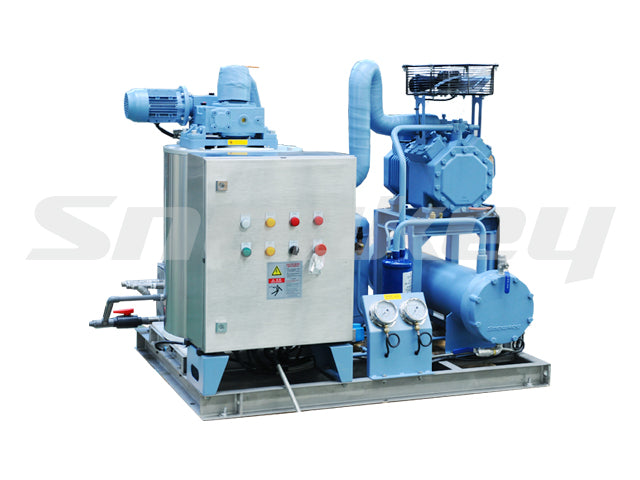

Snowkey 1600kg/24hr Marine On-Board Flake Ice Machine - Model SFM16W

A flake ice machine designed for use on board fishing vessels, producing 1,600 kg of dry flake ice every 24 hours to keep the catch fresh at sea.

Applications: Fishing vessels, fisheries and seafood preservation.

Features

• Built to pressure vessel standards: solid, safe and reliable
• Continuous low-temperature ice making, ice temperature down to -10°C
• Dry, well sub-cooled flake ice up to 2.5 mm thick
• Special water supply and refrigeration design withstands vessel rocking of up to 35°
• Stainless steel and alloy evaporator and base for corrosion resistance and long service life
• Electrical control panel and circuitry built to marine electrical standards
• Fully automatic, stops automatically when ice storage is full for unattended running
• Environmentally friendly refrigerant (R404A / R507A)

Specifications

• Ice production: 1,600 kg / 24 hours
• Ice temperature: -10°C
• Refrigerant: R404A or R507A
• Evaporating / condensing temperature: -28°C / 38°C
• Installed power: 6.5 kW
• Running power consumption: 5.6 kW
• Water consumption: approx. 67 L/hour
• Ice outlet diameter: 460 mm
• Dimensions (L x W x H): 1420 x 1150 x 1305 mm
• Weight: 900 kg
• Rated conditions: water 20°C, ambient 33°C (operating range: water 0–35°C, ambient 5–40°C)

Please note:

• Price on application. Quotes exclude installation, commissioning and refrigerant charge unless stated. Please contact us for an installed quote.
• Made to order. Allow approx. 2-3 months for manufacturing and delivery.
• Warranty: 12 Months
• ICETEC are authorised SNOWKEY Distributors and can price any Snowkey ice makers.
• Model and specifications may change without notice.
